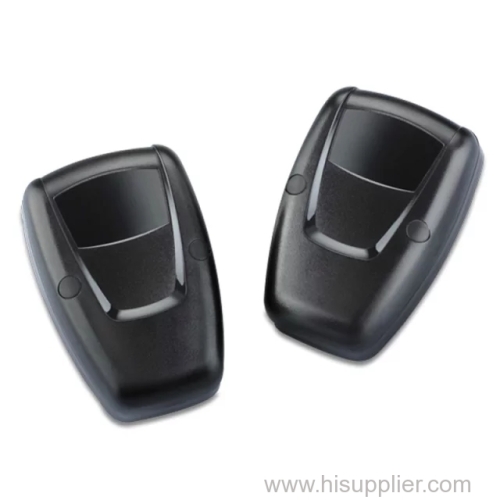

Photocell for Gate Opener, Infrared Sensor
NO : Normal Open , Short with COM when detect infra
NC : Normal close , Short with COM when no detect infra

Sensitive Function:In this function ,the photocell work
more sensitive and quick,but it porbable useless in the rain or
snow weather.To open this function ,you should short for 2 and3 on the receiver board.

Technical Characteristics
Range :
20 m STANDARD
Range can be reduced to 50% in bad weather
Conditions : fog, rain, dust, etc.

Power Supply : 12 to 24V DC/AC
Wave Length : 880 Nm
Infra-Red Frequency : 540 Hz

Input : RX 20 mA - TX 35
Operating Temperature : - 20°C to 70°C
Relay Output : 1A max 24V
Dimensions : 85X55X29mm
